PDAC-12
Description
Specifications
Accessories
Downloads
CAD
Quote
Optimal performance and longer life on adjustable frequency power
Continuous constant torque down to zero speed
Custom designs for any base speed and extended top speeds
Handles the most demanding applications from fractional to 1,000 hp
Compact and lightweight design
150% maximum overload torque from zero speed to base speed for 1 minute
High torque to inertia ratio
Capable of high speeds due to lower rotor inertias and high power density

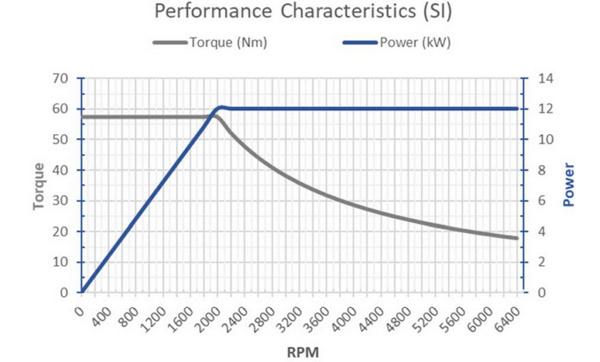

Power
12 kW [16 hp]
Torque
57 Nm [42 lb-ft]
Maximum Speed
6400 rpm
Constant Torque Range
0 - 2000 rpm
Constant Power Range
2000 – 6400 rpm
Rotation
Bi-directional
A-A Charged Air Cooling
Adapter Plate Kit
Adjustable Dyno Lift
Advanced Calibration Kit
Air Starter
Air Storage Tank
Automatic Day Tank
Base Kit
Blow-by Meter
Calibration Weight Kit
Companion Flanges
Cooling Column
Diesel Fuel Holding Tank
Digital Air/Fuel Ratio Meter
Direct Capture Exhaust System
Drive Shaft Guard
Drive Shaft SAE 1710
Dyno Plex (Water Treatment System)
E-Stop Kit
Electric Starter
Emission Analyzer
Engine Cart
Engine Interface Module
Flywheel Adapter Kit
Fuel Measuring Unit
Hand-Held Remote Terminal
Hose Interconnect Kit
Ignition Power Supply
Instrumentation Boom
LightSpeed Software
Load Control System
Mass Flow Meter
Medium-Volt Power Analyzer
Multi-Point Automatic Lubrication
Optical Tachometer
Optical Temperature
Pedestal Mount
Pressure Sensors
Smoke Meter
Sub-Base
Temperature Sensors
Test Cell Instrumentation Unit
Throttle Actuator
Throttle Control Servo Linear Actuator
Torque Transducer
Torsional Coupling
Un-interpted Power Source
Vibration Sensors
Water Monitoring System
Water Recirculation System
Weather Station
PDAC-12 Brochure
