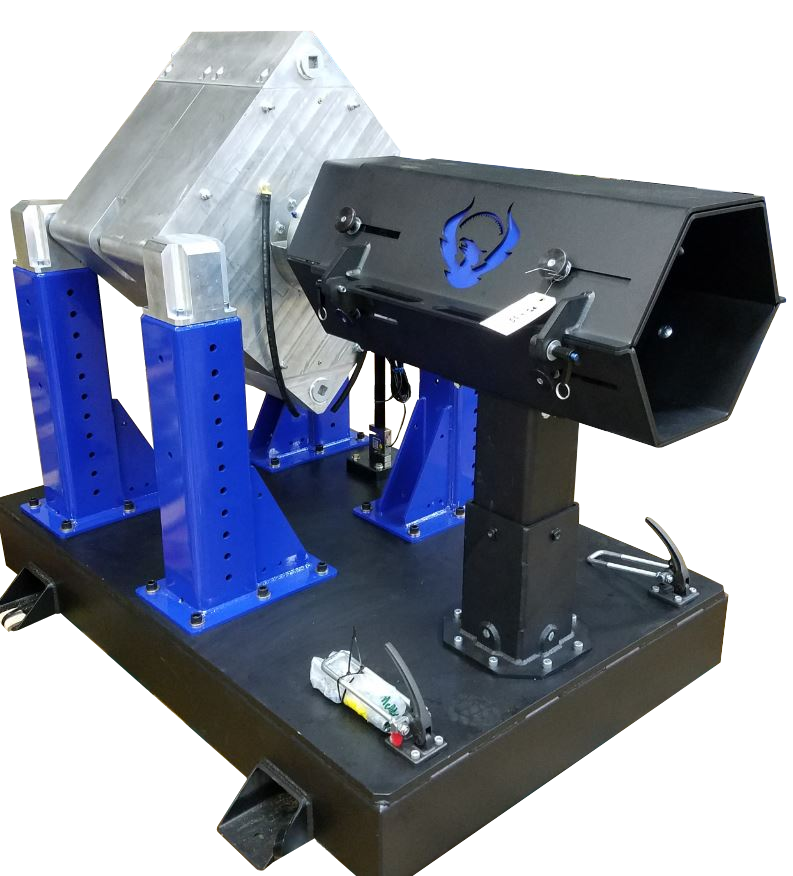

Water Brake Engine Dynamometers
Our water brake style engine dynamometers are designed with a single rotor. They have very low inertia, high capacities (75kW -10,000kW), and bi-directional operation. Each unit is made with corrosion resistant and heavy-duty materials and components for longevity. All backed by our industry-leading two-year warranty.
- Optimal performance and longer life on adjustable frequency power
- Continuous constant torque down to zero speed
- Custom designs for any base speed and extended top speeds
- Handles the most demanding applications from fractional to 1,000 hp
- Compact and lightweight design
- 150% maximum overload torque from zero speed to base speed for 1 minute
- High torque to inertia ratio
- Capable of high speeds due to lower rotor inertias and high power density
Standard Models
MODEL | MAX POWER kW (HP) |
MAX TORQUE Nm (ft Lbs) |
MAX SPEED RMP |
PDWB-75 | 75 (100) | 300 (220) | 12000 |
PDWB-250 | 250 (335) | 1590 (1175) | 8000 |
PDWB-500 | 500 (670) | 3180 (23500) | 7000 |
PDWB-1000 | 1000 (1340) | 6370 (46950) | 5500 |
PDWB-1500 | 1500 (2010) | 9550 (7045) | 4800 |
PDWB-2500 | 2500 (3350) | 15910 (11740) | 4000 |
PDWB-3000 | 3000 (4025) | 20460 (15090) | 3400 |
PDWB-3500 | 3500 (4695) | 27850 (20540) | 3100 |
PDWB-4000 | 4000 (5365) | 34725 (25610) | 2900 |
PDWB-5000 | 5000 (6705) | 47750 (35215) | 2600 |
PDWB-7500 | 7500 (10055) | 79575 (58960) | 2100 |
PDWB-10000 |
10000 (13410) | 106100 (78255) | 1900 |
